3 Bedroom Small Modern House

Share This Design:

Small yet complete feature like this 3 bedroom small modern house with 95 square meter floor area. This layout can conveniently be erected in a lot with a minimum lot frontage of 14.1 meters and depth of 16.55 meters. Total lot area minimum for this design is 233 sq. m. with setback from each side of 1.5 meters, 2 meters at the rear and 3 meters at the front. Having said that, this house can also be single detached by making the left side wall as firewall. it will reduce down the lot area requirement to at least 209 sq. m.

Starting at the front, the porch is 4.5 m by 1.5 m with brick accent column and wall with wooden finish enclosure. it is elevated in 3 steps or at least 450 mm from the natural ground level with small plant box as a barrier. the main entrance door is a combination of fixed glass and double swing anodized aluminum framed door. Living room is 4.5 m by 5.2 m with aluminum picture window on the right. Living area total is 23.5 sq. m..

Small Modern House View2

Combined dining and kitchen measures 4.8 m by 3.5 m with L-shaped kitchen counter, stainless steel double sink, dining table which can accommodate 10 persons. At the dining is a door opening to small Lanai or patio at the side. At the back is a door leading to the service area or can be considered as laundry area. 3 bedroom small modern houses are very efficient in terms of space maximization and efficiency.

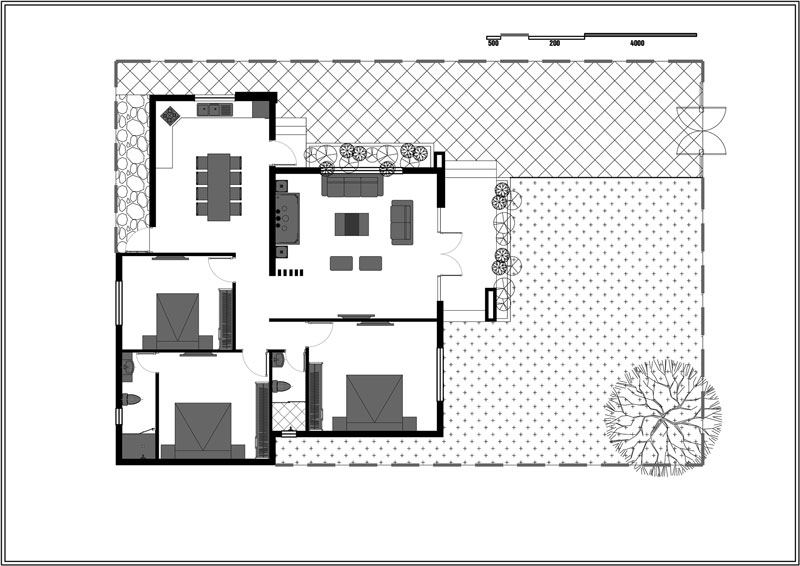

Small Modern House Floor Plan

The 3 bedrooms are carefully laid-out to form a very efficient design. Each room is provided with built-in cabinets and flat screen TV for recreation before going to sleep and rest for the very busy work day. A common toilet and bath will serve the 2 bedrooms and the whole occupants in the dining and living area. While one bedroom has an en-suite bathroom, this can be regarded as the Master’s bedroom.

Small Modern House View3
